      Welding manipulator
      2019-03-18 20:24

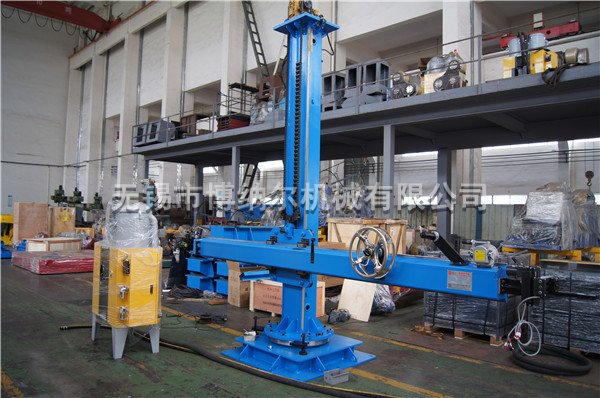

      Welding manipulator
      Detailed description
      The automatic welding center consists of welding manipulator, welding power source (including MIG/MAG, TIG, PLASMA WELDING, SAW), welding roller frame (or welding positioner) to weld metal containers and structural parts. The equipment can be controlled separately and jointly. According to customer's needs, weld tracker, arc length tracker, oscillator, monitor, flux conveying and recycling devices can be selected. It is suitable for pressure vessel, chemical machinery, refrigeration equipment, nuclear power construction, metallurgical construction, engineering machinery, petrochemical engineering and many other industries.

      Options: 1, electric/manual mobile trolley 2, electric/manual cross fine-tuning 3, manned seat or platform 4, weld seam indication 5, monitoring system 6, flux delivery and recovery system



      small-scale
      light
      Medium-sized
      Heavy
      Super heavy
      Specification type
      LH1010
      LH1515
      LH2020
      LH2030
      LH2535
      LH3030
      LH3040
      LH4050
      LH5050
      LH5060
      LH6070
      LH6060
      LH7070
      LH8080
      Lifting stroke(mm)

      1000

      1500
      2000
      2000
      2500
      3000
      3000
      4000
      5000
      5000
      6000
      6000
      7000
      8000
      Horizontal telescopic stroke(mm)
      1000
      1500
      2000
      3000
      3500
      3000
      4000
      5000
      5000
      6000
      7000
      6000
      7000
      8000
      Lifting speed(mm/min)
      435
      1000
      1000
      1400
      1400
      Horizontal telescopic speed(mm/min)
      Manual/electric adjustable
      128-1280
      110-1100
      110-1100
      150-1500
      Minimum distance under crossarm along off-track surface(mm)

      800

      965(Mobile rotary type)
      930(Fixed rotary type)
      1100(Mobile rotary type)
       1095(Fixed rotary type)
      1350(Mobile rotary type)
       1325(Fixed rotary type)
      1350(Mobile rotary type)
       1325(Fixed rotary type)
      Maximum allowable load on front end of crossarm(kg)
      50
      100
      150
      300
      500
      Column rotation
      angle(°)
      ±180°
      ±180°
      ±180°
      ±180°
      ±180°
      speed(rpm)
      Manual
      Manual
      0.1/Manual
      0.1/Manual
      0.7
      Trolley Speed(mm/min)
      Manual
      Manual/1500
      1500
      2500
      2500
      Interior gauge of trolley(mm)
      ——
      1000/840
      1750
      1808
      2500
      Outline size
      High * total
      2400*
       1800
      3600*
       3000
      4100*
       3500
      4100*
       4500
      4600*
       5000
      5650*
       4800
      5650*
       5800
      6650*
       6800
      7900*
       6800
      7900*
       7800
      8900*
       8800
      9450*
       8300
      10450*
       9300
      11450*
       10300
      Trolley size
      1250/1050*190 1400*1480*210
      1880*1200*265(Mobile rotary type)
      1200*1200*170(Fixed rotary type)
      2500*2100*330(Mobile rotary type)
      1800*1500*312(Fixed rotary type)
      3200*2200*375(Mobile rotary type)
      2000*2000*350(Fixed rotary type)
      3200*2900*375(Mobile rotary type)
      2500*2500*350(Fixed rotary type)
