      Welding positioner
      2019-03-18 21:32

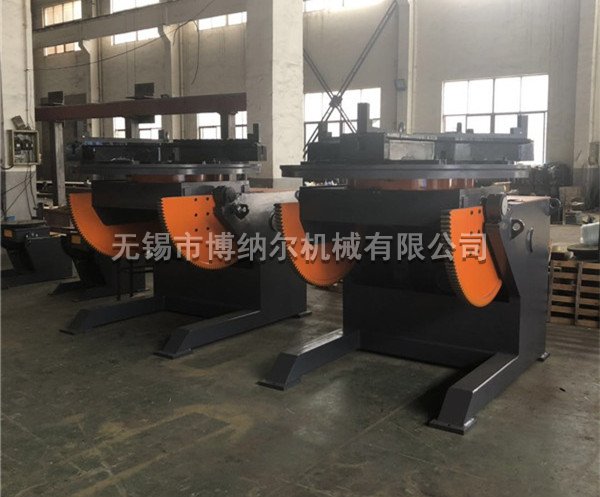

      Welding positioner
      Detailed description
      Welding positioner is a special equipment for welding flange and disc workpiece. It can make the workpiece rotate 360 degrees or turn over 0-90 degrees/120 degrees. It can be used in conjunction with the operator and arc welding power source, so that the workpiece can reach the ideal welding position. The rotating speed is steplessly regulated by frequency converter, and the operation is stable. The structural forms can be divided into single-seat tilting type, head-tail type, head-tail lifting type, L-type rotary tilting type, etc. Special requirements are designed separately.

      Specification type
      HB-1
      HB-3
      HB-6
      HB-10
      HB-20
      HB-30
      HB-50
      HB-80
      HB-100
      HB-150
      HB-200
      HB-300
      HB-500
      Rated load-bearing weight(kg)
      100
      300
      600
      1000
      2000
      3000
      5000
      8000
      10000
      15000
      20000
      30000
      50000
      Slewing speed (rpm)
      0.3-3
      0.15-1.5
      0.1-1
      0.05-0.5
      0.05-0.5
      0.05-0.5
      0.05-0.5
      0.05-0.5
      0.05-0.5
      0.05-0.5
      0.05-0.5
      0.04-0.4
      0.04-0.4
      Reverse Speed (rpm)
      手動
      0.7
      1.0
      0.3
      0.2
      0.2
      0.2
      0.2
      0.2
      0.1
      0.1
      0.1
      Workbench diameter(mm)
      Φ400
      Φ600
      Φ1000
      Φ1200
      Φ1300
      Φ1400
      Φ1500
      Φ1800
      Φ2000
      Φ2500
      Φ2500
      Φ3000
      Φ4000
      Maximum eccentricity(mm)
      100
      100
      150
      150
      150
      200
      200
      200
      200
      200
      200
      200
      200
      Maximum barycenter distance(mm)
      150
      150
      200
      200
      250
      300
      300
      400
      400
      400
      630
      630
      800
      Turn-over angle of worktable (°)
      0-90
      0-90
      0-90
      0-105
      0-105
      0-120
      0-120
      0-120
      0-120
      0-120
      0-120
      0-120
      0-120
      Rotary motor power(kw)
      0.09
      0.18
      0.37
      0.75
      0.75
      1.5
      2.2
      2.2
      3
      3
      4
      7.5
      11
      Turn over motor power(kw)
      -
      -
      0.37
      0.75
      1.5
      1.5
      1.5
      3
      4
      5.5
      7.5
      11
      18.5
      90°Diameters of hourly rotation
      ≤600
      ≤1000
      ≤1200
      ≤1500
      ≤1500
      ≤1600
      ≤1800
      ≤2200
      ≤2500
      ≤3400
      ≤3400
      ≤4200
      ≤5700
      Speed regulation mode
      Rotary Frequency Conversion Speed Regulation
      Flip center distance
      370
      560
      720
      835
      832
      1037
      1185
      1100
      1550
      1800
      2000
      2600
      2250
      Outline size
      L(mm)
      750
      860
      1200
      1300
      1570
      1920
      2200
      2380
      2660
      2780
      2895
      4200
      5600
      H(mm)
      497
      700
      900
      1000
      1000
      1240
      1400
      1380
      1850
      2100
      2350
      3000
      3600
      W(mm)
      434
      668
      860
      1040
      1090
      1310
      1430
      1430
      1638
      1910
      1958
      3300
      4400
